Ver-Mac Flagger-Mac – Automated Flagger Assistance Device (AFAD)

Download PDF Spec Sheet

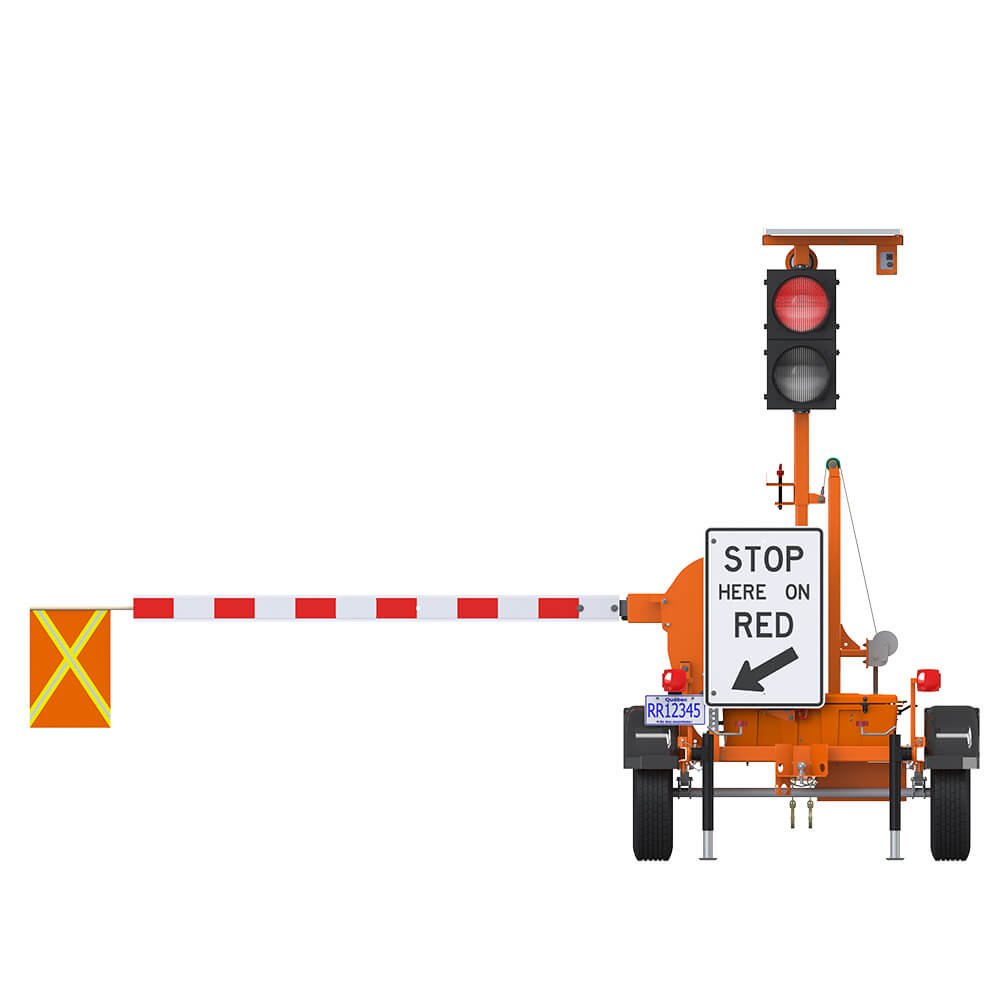

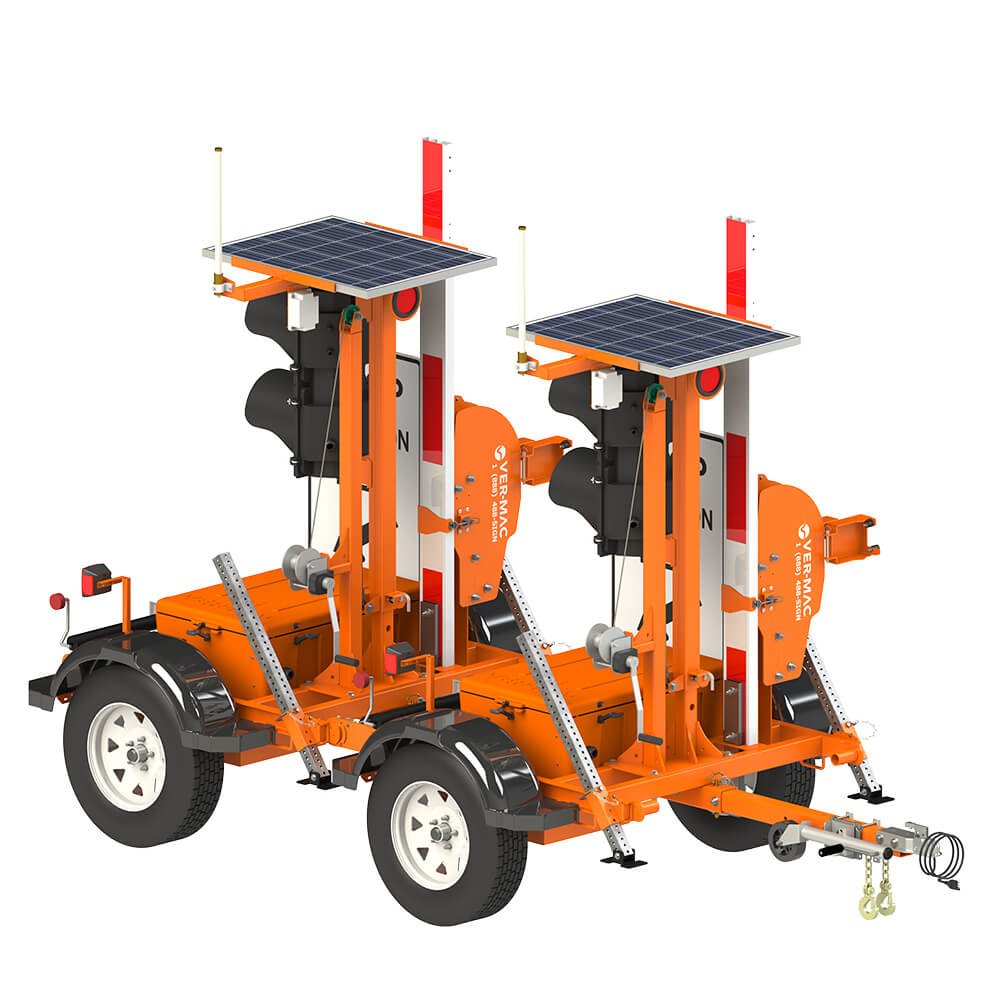

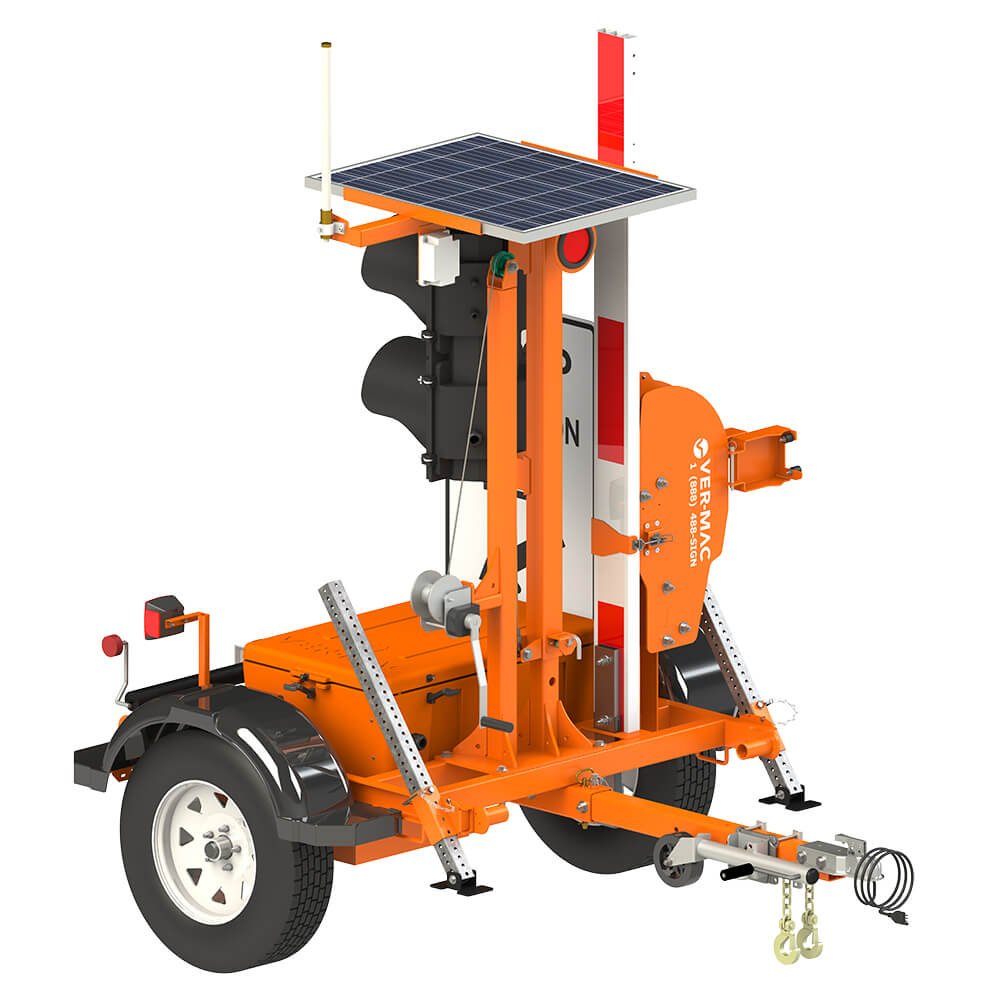

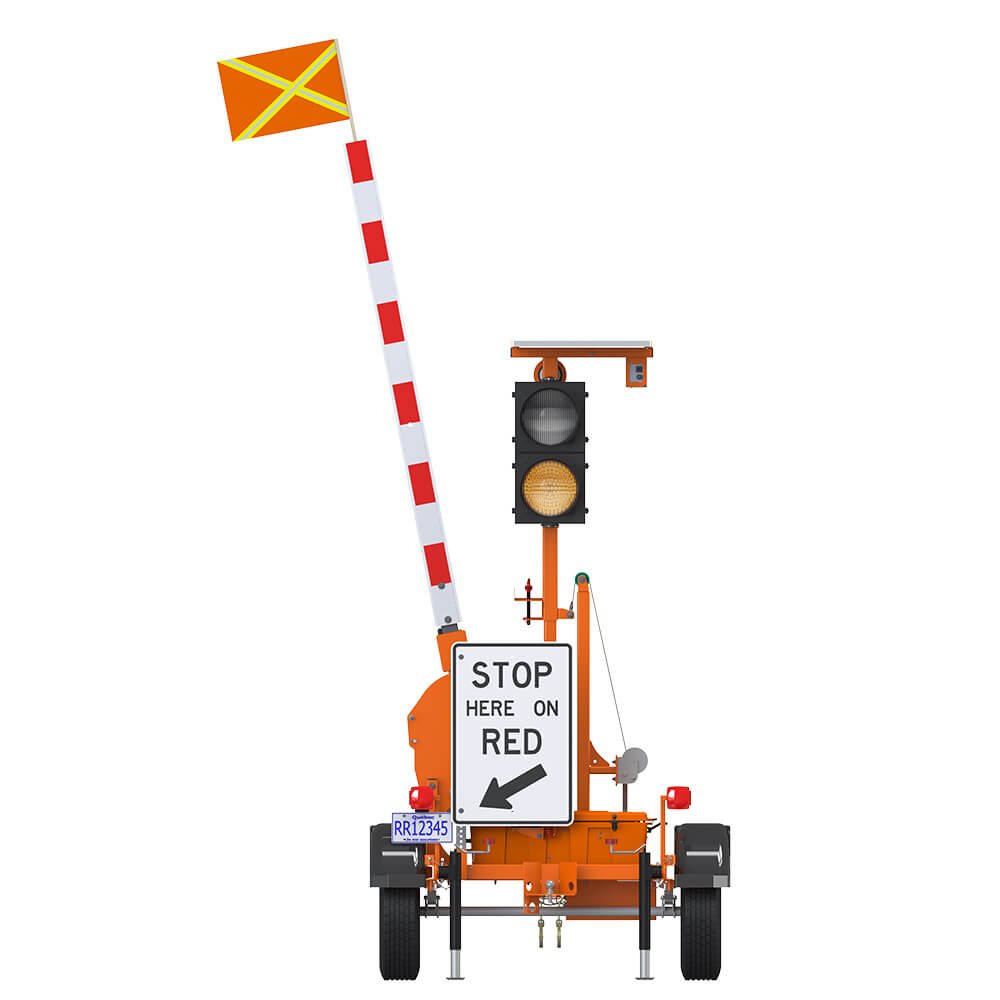

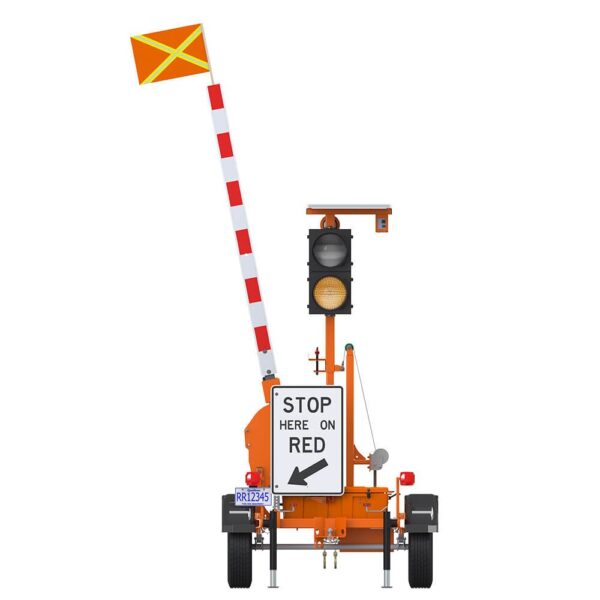

Remotely operated, the Ver-Mac Flagger-Mac trailer-mounted automated flagger (AFAD) is designed to keep your workers away from road hazards. Its design includes a breakaway arm mechanism in case of impact and makes it easy to use. Powered by solar energy, the Flagger-Mac is operated by our intuitive V-Touch Controller and a wireless remote controller. A safe choice for your teams, and a profitable one for your company.

Wireless Remote
Flagging Out of Harm’s Way

• Operate one or two units from up to 1000 ft. away.
• Weatherproof
• Industrial design for use under any conditions (rain, snow, cold, intense heat)
• User Manual

Remote Ease of Use

• Easy to operate with work gloves
• Integrated LED feedback
• Flush mount buttons to avoid non-intended actions
• Long-Lasting Battery – 9-volt battery lasts for months without recharging or changing

V-Touch Controller
The Industry’s Most Innovative and Easy-to-Use Controller

• Large point-and-go icons to manage and operate the unit
• Large 7 in. (178 mm) LCD color graphic touchscreen
• Information at Your Fingertips
• Real-time display of battery/solar voltage, gate/signal timing

Superior ITE Lamps

• Lamps meet MUTCD standards and provide superior performance, reliability, and energy efficiency.

Break-Away Gate

• The gate stays attached to the unit after an impact, reducing operational downtime.

Gate Dimension and Specifications

• Material: PVC
• Reflective tape
• Gate height: 4 in. (102 mm)
• Located 4 ft. from the ground
• Gate height off the ground (down position): 4 ft. (47 1/4 in. / 1200 mm)
• Gate length: meets provinces requirements
• Gate operating height (up position): 166 in. (4214 mm)

Dimensions and Weight

• Operating height: 129 in. (3281 mm)
• Operating width: 169 in. (4288 mm)
• Traveling height: 100 3/4 in. (2559.05 mm)
• Traveling height with BC gate: 118 3/4 in. (3016.25 mm)
• Traveling width: 70 in. (1788 mm)
• Overall length: 94 4/16 in. (2393.95 mm)
• Axle/suspension: 2000 lbs (907 kg)
• Weight (approx.): 1000 lbs (455 kg)

Options

• Radio communication
• Modem
• Additional gate length and reflective tape available
• Stop here sign
• Enhanced Security for Anti-Theft Battery Box
• Intrusion alarm
• Audible alarm
• Telescopic PVC gate
• Other options are also available

Warranty

• 1 year on the trailer
• 2 years on electronic components manufactured by Ver-Mac

Compatible with the Flagger-Mac Lite

Download Operations Manual

Download Parts Manual
